High Speed 150 Cable Extrusion Line 0-5kv PE Pvc Cable Extrusion Process Machine For 4*300

High Speed 150 Cable Extrusion Line 0-5kv PVC / PE Extruder Machine For 4*30

Specification:



Description1:

This machine is used for insulating or sheathing LSZH cables. It features a specialized screw for LSZH material, and the compression ratio is strictly controlled to ensure a smooth extrusion process. It also has a heating and cooling system tailored to the needs of the machine to ensure the optimal operating temperature. Additionally, there is a user-friendly PLC control panel for quick adjustments to production configuration and settings.


Feature:

Using a specialized screw for LSZH material and strictly controlling the compression ratio based on the material's unique characteristics.
Ensuring the tensile strength, elongation, and surface finish of LSZH material by choosing a squeezing mold for insulation and a semi-squeezing mold for sheathing.

The entire line is controlled by PLC with a human-machine interaction interface, using digital control technology and PLC programs for a reliable and flexible control system.

The cooling system of the entire line is crucial for extruding LSZH material, therefore, a special heating and cooling temperature control system is adopted.

Description2:

Here's a description of a high-speed 150 cable extrusion line for 0-5kV cables, specifically a PVC/PE extruder machine for 4*300 cables:

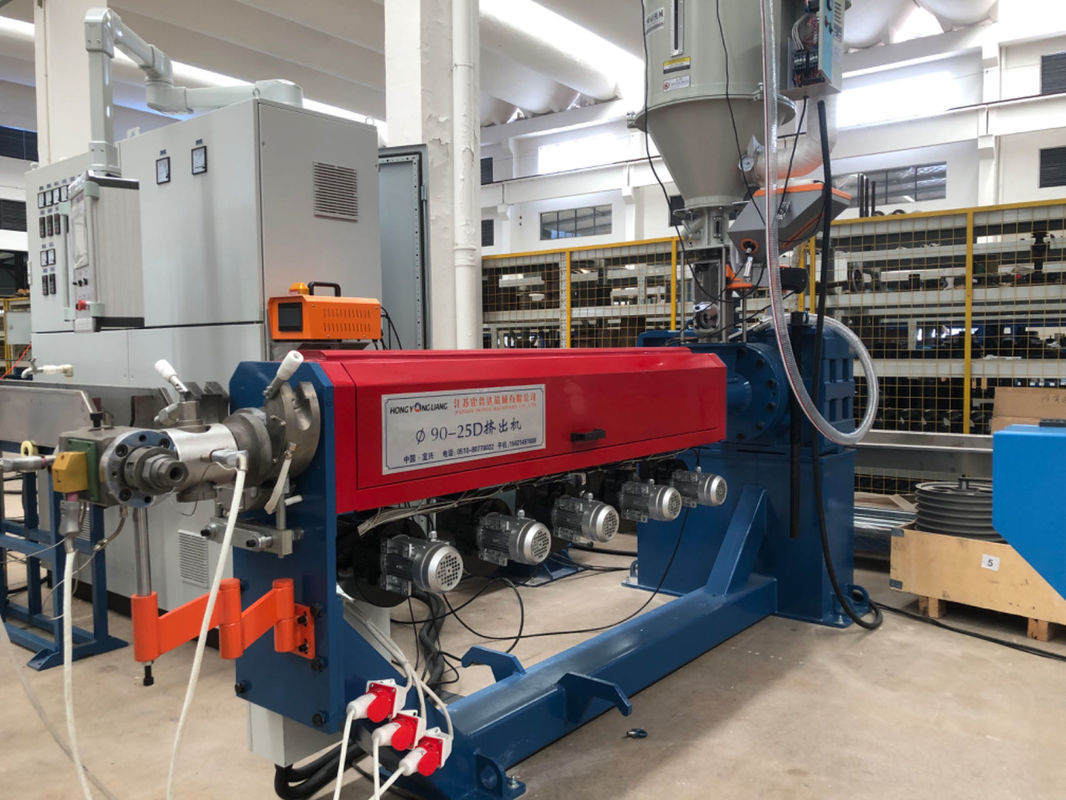

1. Extruder Machine:

   • The extrusion line is equipped with a PVC/PE extruder machine specifically designed for cable production. It is capable of extruding PVC (Polyvinyl Chloride) or PE (Polyethylene) materials, which are commonly used for insulation and jacketing in cables.
   • The extruder machine is optimized for high-speed operation, ensuring efficient and continuous production of cables.
   • It features a heated barrel with a rotating screw that conveys and melts the PVC/PE material. The screw design and configuration are tailored for processing PVC/PE materials used in cable production.
   • Temperature control zones along the barrel allow for precise temperature regulation to achieve optimal melting and extrusion of the PVC/PE materials.
   • The extruder machine may include a control system for temperature, screw speed, and pressure, providing accurate control and adjustment of process parameters.

2. Production Capacity:

   • The high-speed 150 cable extrusion line is capable of producing cables with a production speed optimized for high throughput.
   • The line is designed to manufacture 4*300 cables, indicating that it produces cables with four conductors, each with a cross-sectional area of 300 square millimeters.

3. Die Design:

   • The extrusion line incorporates a die specifically designed for extruding 4*300 cables. The die shapes and sizes the extruded cable, ensuring uniformity and accuracy in its dimensions.
   • The die design is tailored to meet the specifications and standards for 4*300 cables, including the desired insulation and jacketing thickness.

4. Insulation and Jacketing:

   • The extrusion line applies PVC or PE materials as insulation and jacketing to the cable. These materials provide electrical insulation between the conductors and protect the cable from environmental factors.
   • The insulation and jacketing materials are selected based on the requirements and standards for 0-5kV cables.
   • The extrusion line ensures precise control of the thickness and quality of the insulation and jacketing layers to meet the desired specifications.

5. Cooling and Sizing:

   • After extrusion, the cable passes through a cooling and sizing process to solidify and stabilize the extruded material.
   • Cooling is typically achieved using water baths or air cooling units, while sizing tools control the cable's diameter and shape, ensuring compliance with the desired specifications.

6. Haul-off Unit and Cutting System:

   • The extrusion line includes a haul-off unit that pulls the extruded cable at a controlled speed, maintaining tension and dimensional consistency.
   • A cutting system accurately cuts the cable into desired lengths, typically measured in meters or feet, to meet customer requirements.

7. Control System and Automation:

   • The extrusion line is equipped with a control system that integrates and monitors various components and processes. This system allows for precise control of parameters such as temperature, speed, and pressure.
   • Automation features, such as touchscreen interfaces and programmable logic controllers (PLCs), enhance productivity and quality control by automating certain tasks and providing real-time monitoring and data logging capabilities.

8. Safety Features:

   • The extrusion line incorporates safety features to ensure a safe working environment. These may include emergency stop buttons, safety interlocks, and guarding mechanisms.

9. Maintenance and Serviceability:

   • The extrusion line is designed for ease of maintenance and serviceability. It may include features such as quick-change components, easy access for cleaning and maintenance tasks, and diagnostic systems for identifying and troubleshooting issues.

Please note that the specific features and configuration of a high-speed 150 cable extrusion line for 4*300 cables can vary depending on the manufacturer and specific requirements. It is recommended to consult with the manufacturer or supplier to confirm the available features and specifications that meet your specific needs for cable production.
