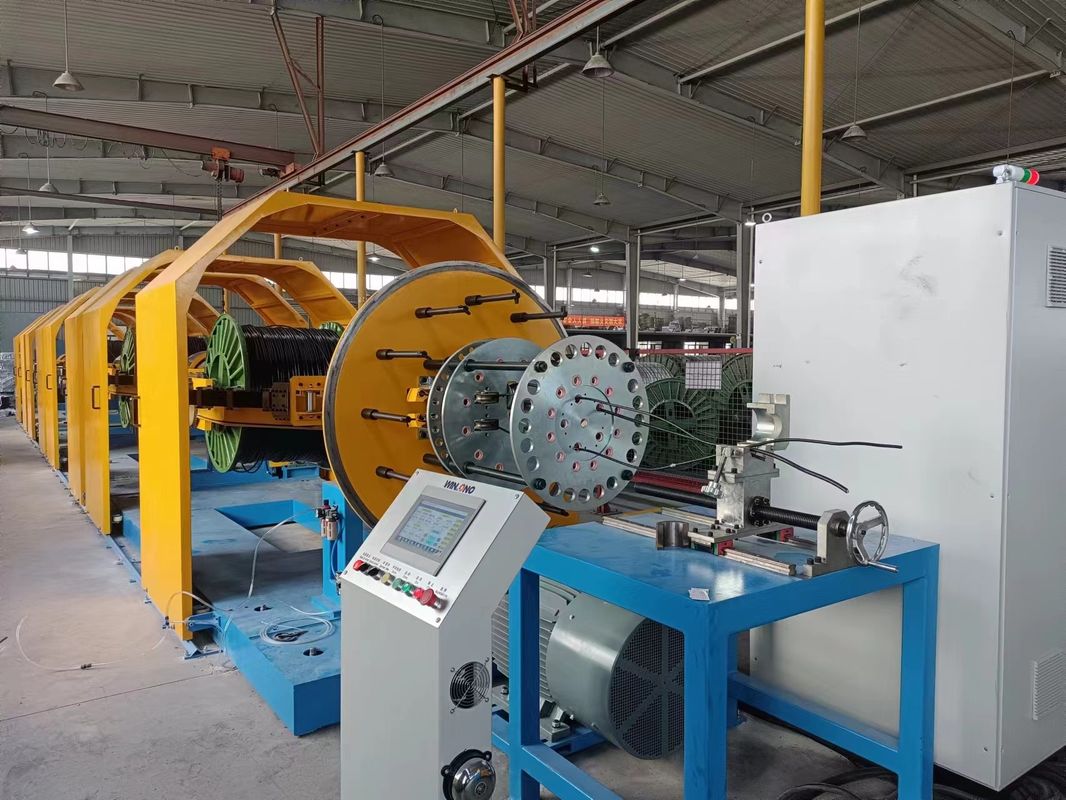

Cantilever Wire Cable Bunching Machine Cable Strander Double Twist

Cantilever Wire Cable Bunching Machine Double Twist Stranding Bunching Machine

Technical Specification

Application:

Suitable for bunch-twisting copper conductors, aluminum alloy conductors, etc., and for twisting cable core wires.

Features:

• The machine is controlled by PLC with a human-machine interface. Digital control technology and PLC programming ensure the reliability of the entire control system. The strand pitch can be flexibly set using the touch screen.
• It adopts a bow with carbon fiber material, which has high strength and is lightweight.
• The bow, traction, and take-up systems all use independent motors.
• Very high efficiency. The production efficiency of the double-twist buncher is about 3 times higher than that of the rigid strander.

Product Description:

The "Cantilever Wire Cable Bunching Machine" is a specialized piece of equipment used in the wire and cable manufacturing industry. It is designed to bunch or gather multiple wires together to create a cable. The "Cantilever" design refers to the machine's structure, which typically features a fixed base with an extended arm or beam that holds the rotating components. This design allows for easy access to the bunching area and facilitates the handling of wires during the process.

The "Double Twist Stranding Bunching Machine" combines the functions of stranding and bunching in a single piece of equipment. Stranding refers to the process of twisting multiple wires together to create a stranded cable, while bunching involves gathering multiple wires without twisting them. The Double Twist Stranding Bunching Machine can perform both functions, providing flexibility in cable production.

When using the Cantilever Wire Cable Bunching Machine, wires are fed into the machine, and the machine gathers them together without twisting to create a bunch. This bunching process is typically used when a cable requires multiple wires to be grouped together without twisting, such as in power cables or control cables that have parallel conductors.

Additionally, the Double Twist Stranding Bunching Machine can be used to twist multiple wires together while also bunching them. This function allows for the creation of stranded cables, which are commonly used in applications that require enhanced flexibility and strength, such as data cables or high-performance power cables.

The machine's rotating components twist or gather the wires in a controlled manner, ensuring proper alignment and tension. The resulting cable or bunch has multiple wires securely grouped together, forming a stronger and more durable structure.

It's important to note that the specifications and capabilities of Cantilever Wire Cable Bunching Machines with Double Twist Stranding Bunching functionality can vary depending on the specific manufacturer and model. Different machines may have varying speed ranges, wire capacity, and additional features to accommodate different wire sizes and production requirements.

Performance characteristics:

Cantilever single twist machine with cantilever structure and adopts PLC program + frequency conversion speed control + pneumatic control, to ensure the uniform tension of the cable; in order to ensure the stability of the geometric structure after twisting, a single twist structure is adopted, and a large-diameter steering guide wheel is designed to minimize bending and low loss; The movement of the cantilever twist and wire reel take up, and the traverse movement of the wire reel, through the double control of the mechanical linkage and the electrical appliance, ensure that the unit has excellent synchronization from the four states of startup, normal operation, slow stop, and emergency stop. Stable characteristics; stable performance of the twist pitch. Simple operation, to ensure excellent product performance.
