120mm Cable Extruder Extrusion Machine With Boosted Productivity
  • 120mm Cable Extruder Extrusion Machine With Boosted Productivity
  • 120mm Cable Extruder Extrusion Machine With Boosted Productivity
  • 120mm Cable Extruder Extrusion Machine With Boosted Productivity
  • 120mm Cable Extruder Extrusion Machine With Boosted Productivity
  • 120mm Cable Extruder Extrusion Machine With Boosted Productivity
120mm Cable Extruder Extrusion Machine With Boosted Productivity

120mm Cable Extruder Extrusion Machine With Boosted Productivity

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Model Number 120mm Screw
Product Details
Screw:
120mm
L/D Ratio:
25:1
Capacity (PVC):
750kg/h
Capacity (LSZH):
810kg/h
Capacity (HFFR):
600kg/h
Capacity (XLPE):
640kg/h
OD Of Outlet Wire:
30-80mm
Power:
160-185kW
Highlight:

120mm Cable Extruder

,

120mm cable extrusion machine

,

Boosted Productivity Cable Extruder

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packaging, Cargo shipment
Delivery Time
30-60 days
Payment Terms
T/T, L/C,
Supply Ability
10 set per month
Product Description

90mm Cable extruder for insulation and inner and outer sheathing of cable and wire with PVC LSZH HFFR XLPE​



Application:

Can be applied to all kinds of cable extrusion process (adding insulation layer or sheathing) of PVC, PE, LSZH, XLPE with high speed and excellent consistency.



Feature:

  • Specialised screw for different insulating materials
  • Whole line controlled by PLC and user-friendly touch screen interface
  • Fixed-center crosshead guarantees concentricity and uniform insulation diameter
  • Production line adopts detecting devices for all-time quality control.



Specification:

Model/specs 35-25D 45-25D 50-25D

65-25D

 70-25D 80-25D 90-25D 100-25D 120-25D 150-25D 200-25D
Screw diameter (mm) Ø35 Ø45 Ø50 Ø60 Ø70 Ø80 Ø90 Ø100 Ø120 Ø150 Ø200
L/D ratio 18:1 25:1
Standard PVC(kg/h) 21 56 70 120 140 205 280 360 520 800 1120
Boosted productivity PVC(kg/h) 30 80 100 175 200 290 400 520 750 1150 1600
Standard LSZH(kg/h) 25 70 90 155 180 260 360 470 675 1050 1450
Boosted productivity LSZH(kg/h) 30 85 110 190 220 315 435 565 810 1260 1740
HFFR(kg/h) 20 65 80 140 160 230 320 420 600 900 1300
Power (Kw) 15 15-22 18-30 30-45 37-55 55-75 90-110 110-132 160-185 185-250 280-355
Outlet wire diameter (mm) 0.2-1.0 0.5-3.0 0.8-5.0 1.5-8.0 5-25 16-35 16-50 20-80 30-80 40-140 50-200








Product Images:

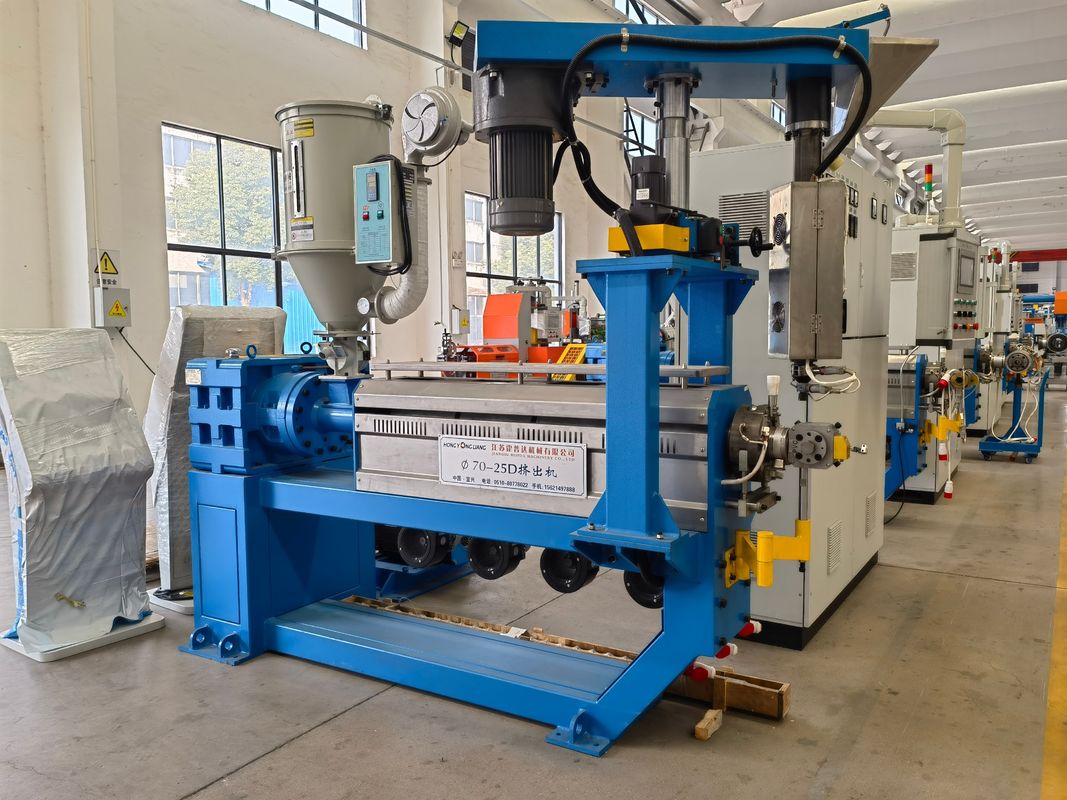

120mm Cable Extruder Extrusion Machine With Boosted Productivity 0

120mm Cable Extruder Extrusion Machine With Boosted Productivity 1120mm Cable Extruder Extrusion Machine With Boosted Productivity 2120mm Cable Extruder Extrusion Machine With Boosted Productivity 3
