1250 Bow Type Cabling Cable Laying Up Machine Underground Cable Laying Machine

1250 bow type cabling/laying up machine cable making machine underground cable laying machine

1250 bow type cabling/laying up machine

Specification:

Description and application:

Our high-speed bow-type stranding machine is capable of stranding and cabling control cables, power cables, etc., with excellent reliability. It uses 65Mn alloy steel for the bow band and features wiring tension control, ensuring stable and efficient performance.

Features:

• All the places where the cable passes are equipped with guide wheels to facilitate the passage of the cable.
• All reels have a broken wire detection: the guide wheel presses on the cable, and at this time, the travel switch at the tail end of the guide wheel is in a disengaged state.
• A bow-breaking protection switch is designed to automatically apply emergency braking when a bow-breaking occurs.
• Safety locking device for the tight top of the wire reel to ensure that the wire bobbin will not fall off during operation and ensure safety.

The 1250 Bow Type Cabling/Laying Up Machine is a type of machinery used in the cable manufacturing industry. It is designed to perform the cabling or laying up process for manufacturing power cables, communication cables, and other types of cables. Here's a general product description for a 1250 Bow Type Cabling/Laying Up Machine:

1. Capacity: The "1250" in the machine's name typically refers to its maximum cable diameter or size. It indicates that the machine is capable of handling cables up to a certain diameter, such as 1250mm.

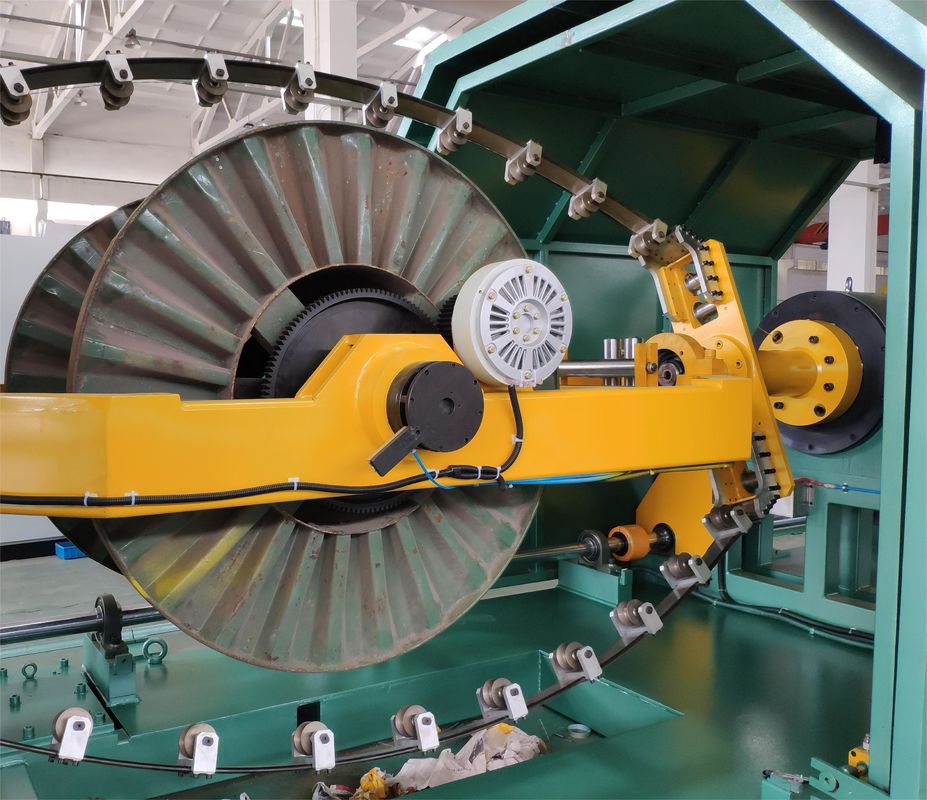

2. Bow Type Design: The machine features a bow type design, which consists of a bow-shaped structure that holds multiple wire or cable strands. The strands are guided and laid up in a helical or parallel configuration to form the final cable structure.

3. Cabling/Laying Up Process: The machine is specifically designed for the cabling or laying up process, which involves twisting or laying multiple wires or cables together to form a unified cable. This process helps improve the cable's mechanical strength, flexibility, and electrical characteristics.

4. Speed and Tension Control: The machine is equipped with a control system that allows operators to adjust and control the speed and tension of the wire or cable strands during the cabling/laying up process. This control system ensures uniformity and accuracy in the cable structure.

5. Bobbin Handling: The machine typically includes a system for handling multiple bobbins or reels of wire or cable strands. These bobbins are mounted on spindles or creels and are fed into the machine to supply the individual strands for the cabling process.

6. Control System: The machine is equipped with a control system that enables operators to adjust and monitor various parameters during the cabling/laying up process. This control system may include features for setting and controlling speed, tension, direction of rotation, pitch, and other relevant parameters.

7. Safety Features: The cabling/laying up machine is designed with safety features to ensure operator safety and prevent accidents. These safety features can include emergency stop buttons, safety guards, and sensors that detect abnormalities or malfunctions. The specific safety features can vary depending on the manufacturer and model.

8. Power Requirements: The machine typically requires a three-phase electrical power supply at a specific voltage and frequency. The exact power requirements may vary depending on the machine's specifications and the region in which it is used.

It's important to note that the specific features and specifications of a 1250 Bow Type Cabling/Laying Up Machine can vary depending on the manufacturer and model. For detailed information, it is recommended to consult the manufacturer's documentation or contact a supplier specializing in cable manufacturing machinery.
