1250mm skip stranding machine for upto 7 core cabling with or without back-twist
  • 1250mm skip stranding machine for upto 7 core cabling with or without back-twist
  • 1250mm skip stranding machine for upto 7 core cabling with or without back-twist
  • 1250mm skip stranding machine for upto 7 core cabling with or without back-twist
  • 1250mm skip stranding machine for upto 7 core cabling with or without back-twist
  • 1250mm skip stranding machine for upto 7 core cabling with or without back-twist
  • 1250mm skip stranding machine for upto 7 core cabling with or without back-twist
1250mm skip stranding machine for upto 7 core cabling with or without back-twist

1250mm skip stranding machine for upto 7 core cabling with or without back-twist

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Model Number 1250, 1+5
Product Details
Single Wire Diameter (soft Conductor):
3-6mm
Single Wire Diameter (hard):
8-15mm
Max. OD:
60mm
Stranding Pitch:
48-1500mm
Max. Rotation Speed:
330rpm (3B)
Power:
55KW
Take-up Bobbin:
PN2000
Payoff Bobbin In Cage:
PN1250
Caterpillar:
2000kg
Center Height:
1000mm
Length * Width:
55m*6m
Highlight:

Bow Cable Core Laying Up Machine

,

1250mm Cable Core Laying Up Machine

,

Aluminum Bow Type Laying Up Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set (stranding host can be ordered separately)
Price
negotiable
Packaging Details
Seaworthy packaging in containter for export
Delivery Time
if no stock in place, 30-60 calendar days
Payment Terms
T/T,L/C
Supply Ability
5 set per month
Product Description

1250mm skip stranding machine for upto 7 core cabling with or without back-twist


Description and application:

With superior productivity than the conventional cradles type cabling machine, our bow type laying up machine is applicable to the stranding of both soft structure cables such as control cable, Aluminum Conductor Steel Reinforced (ACSR) overhead cable, power cable and bare copper, aluminum and aluminum alloy wires with up to 7 cores. The back - twist function is optional according to your need. The drive of the machine can be independent or by ground shaft.


Features:
  1. User friendly human-machine interface for effortless operation and comprehensive monitor
  2. Adopting PLC for automatic pitch adjustment
  3. Can be equipped with a back-twist mode with a maximum of 100%.
  4. Independent drive or ground shaft drive
  5. Utilisation of AC induction servo motors for reilable and energy-efficient operation

Specification:


Payoff bobbin(mm)

Max. rotation speed

(r/min)

Single wire diameter

(mm)


Pitch

(mm)


Max. OD(mm)


Power(KW)


Caterpillar(kg)



Take-up


Central height(mm)

 Length * width(m)
3B 4B 5B 6B Soft conductor Hard conductor
Ø1000 430 400 370 350 Ø8～Ø15 Ø3.0～Ø6.0 90-1400 45 37 1600 PN1600 1000 50×6
Ø1250 330 288 270 250 Ø8～Ø15 Ø3.0～Ø6.0 48-1500 60 55 2000 PN2000 1000 55×6
Ø1600 250 220 200 180 Ø10～Ø20 Ø3.5～Ø8.0 60-1500 70 90 2000 PN2500 1000 60×7



Main components:
  1. Central pay-off stand
  2. Wire guiding stand
  3. Stranding host
  4. Filer payoff stand (Optional)
  5. Assembling die holder
  6. Central taping machine
  7. Armouring machine
  8. Meter counter
  9. Capstan/Hual-off/Caterpillar
  10. Take up with traversing
  11. Control system
  12. Transmission system
  13. Wearing parts

Product images:

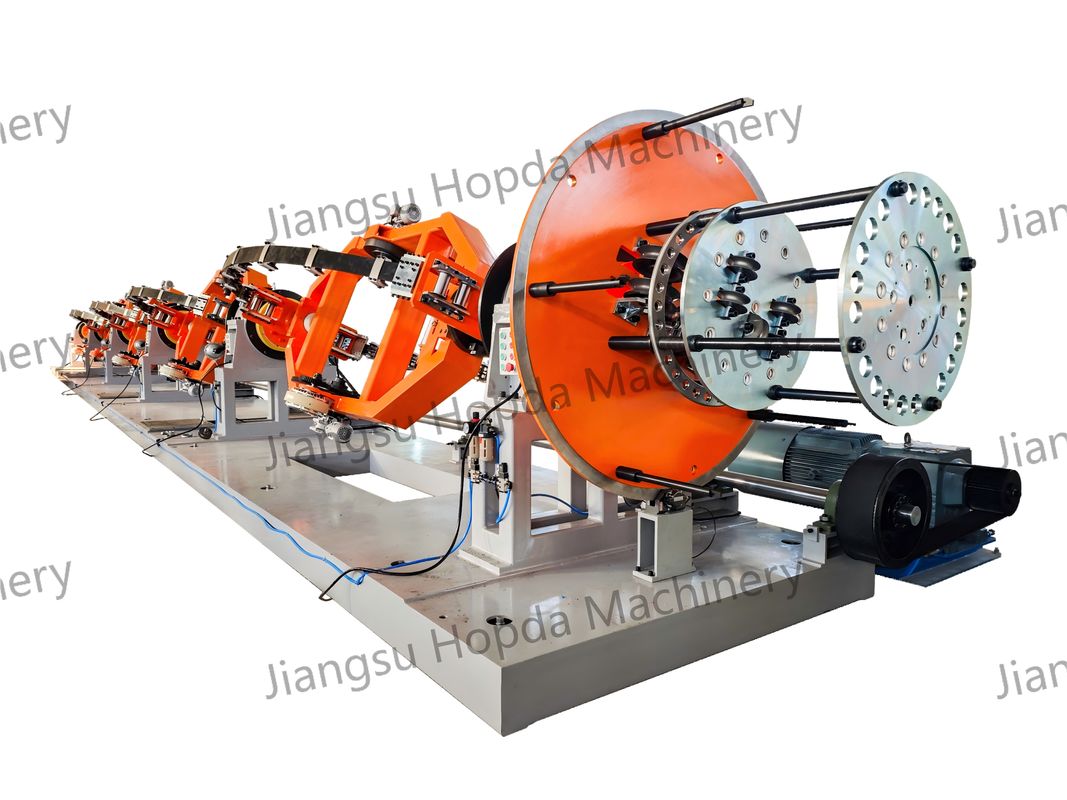

1250mm skip stranding machine for upto 7 core cabling with or without back-twist 01250mm skip stranding machine for upto 7 core cabling with or without back-twist 1
