Barrel Type Cable Wrapping Machine For Paper And Metal Tape On Laying Up Machine

Barrel Type Cable Wrapping Machine For Paper And Metal Tape On Laying - Up Machine

Technical specification

Application:

Applied to tape vertically for copper wire, insulation wire and twisted-cable,etc. The tapping material is mica tape, aluminum foil, fireproof tape, PET foil, etc. The new version machine could store 10 times the quantity of the tape as the old type. The production efficiency is very high because the production is continuous.

Features:

• The tape could be used continuously. The machine could store 10 times the quantity of the tape as the old type.
• The production efficiency is more than twist that of the original model.
• Good traversing:Take-up traversing adopted axis-row type structure, spacing can be set arbitrary.
• Axis-row type structure for take-up traversing, spacing can be adjusted according your need.
• Excellent tension control during the whole taping process, enabling for constant tension with no human intervention.

Product Description

A barrel-type cable wrapping machine for paper and metal tape on a laying-up machine is a specialized piece of equipment used for applying paper and metal tape to cable bundles during the cable laying-up process. This machine is designed to wrap the tape around the cable bundle in a barrel-like configuration, providing protection and insulation.

Here are some key features and characteristics of a barrel-type cable wrapping machine for paper and metal tape on a laying-up machine:

1. Barrel Configuration: The machine is designed to wrap the tape (paper and/or metal) around the cable bundle in a barrel-like configuration. This configuration ensures complete coverage and protection of the cable bundle.

2. Paper and Metal Tape Compatibility: The machine is compatible with both paper and metal tapes used for cable wrapping. Paper tape provides insulation and protection, while metal tape adds strength and shielding properties. The specific type of tape used will depend on the application requirements and desired properties.

3. Laying-Up Machine Integration: The cable wrapping machine is typically integrated into a laying-up machine, which is responsible for combining multiple cable elements into a single cable bundle. The cable bundle is then fed into the barrel-type wrapping machine for tape application.

4. Automatic Operation: The machine is designed for automatic operation, with controls and sensors that ensure precise and consistent tape application. It may feature adjustable parameters such as tape tension, wrapping speed, and wrapping pitch to accommodate different cable sizes and specifications.

5. Material Handling System: The machine may include a material handling system that facilitates the feeding and guiding of the cable bundle through the wrapping process. This system ensures smooth and controlled movement of the cable bundle for optimal tape application.

6. PLC Control Panel: The machine may be equipped with a programmable logic controller (PLC) control panel for easy operation, parameter adjustment, and monitoring of the wrapping process. The PLC control panel allows for precise control and customization of the machine's functions.

7. Safety Features: The machine may incorporate safety features such as emergency stop buttons, safety guards, and interlocking mechanisms to ensure the safety of operators during operation.

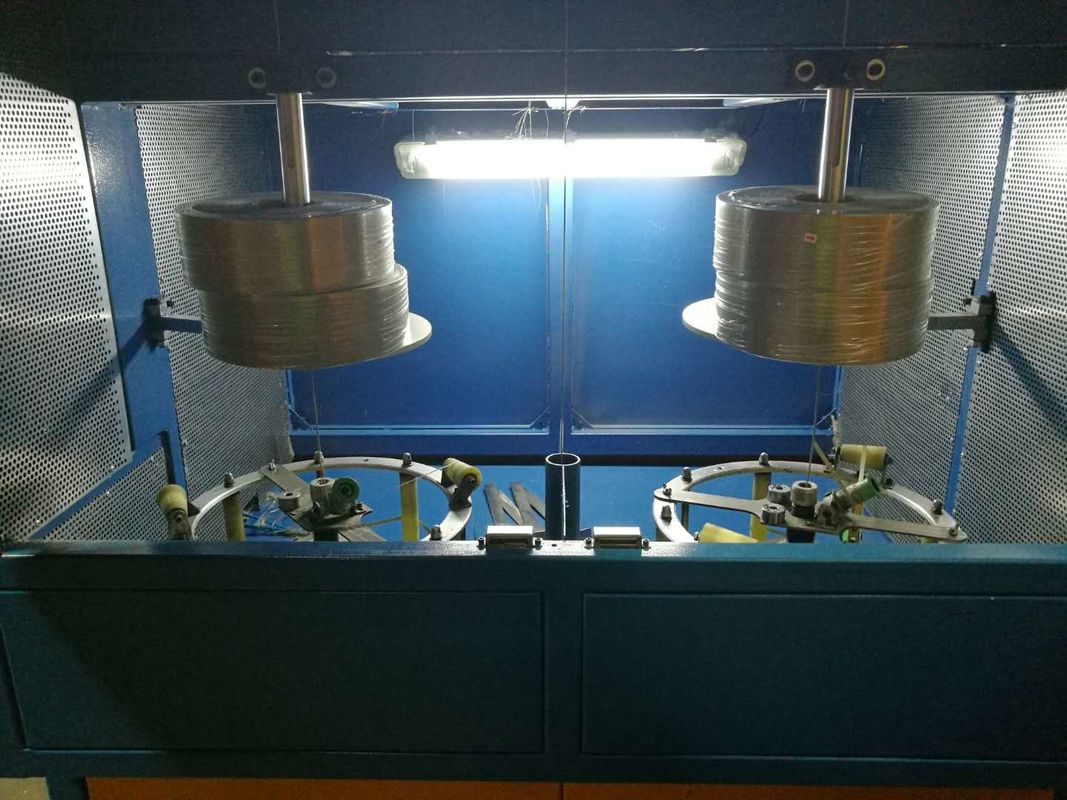

Product Details
