Cable Coiling And Packing Machine
>
|
|
| Place of Origin | China |
| Brand Name | Hopda |
| Certification | ISO,CE |
| Model Number | 500 |
Product Description

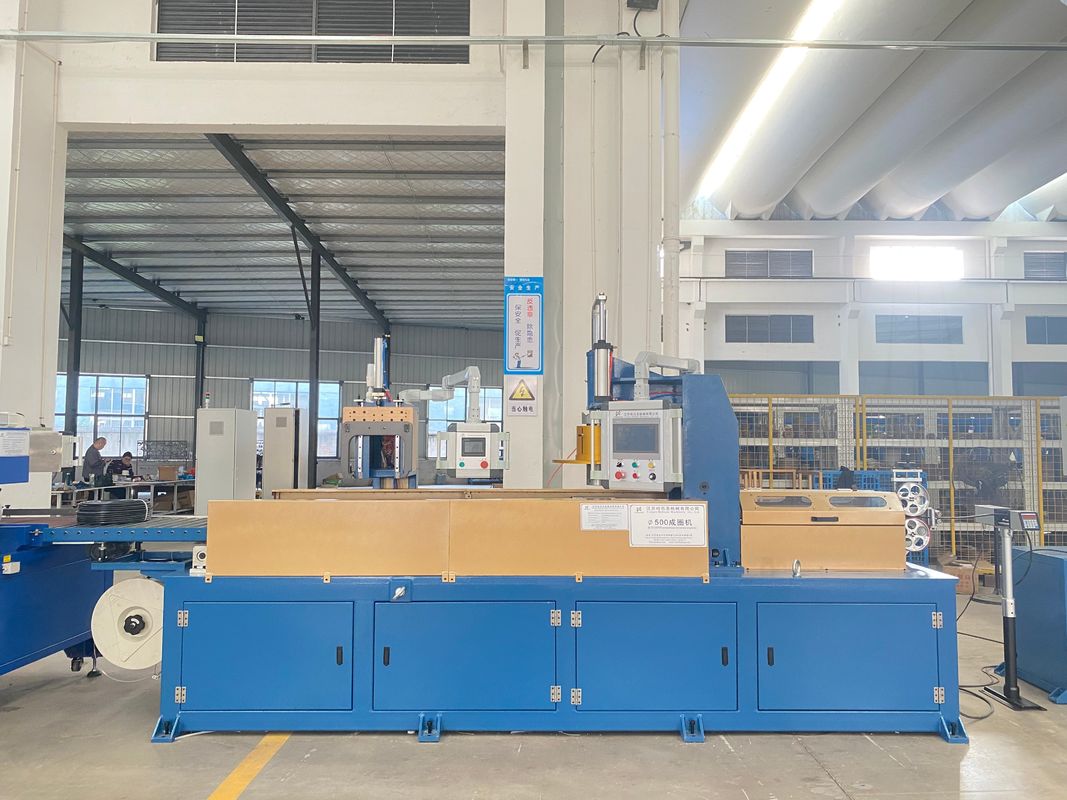

The 500 Automatic Cable Coiling and Strapping Machine is designed to cooperate with the 500 Thermoplastic Packaging Unit. It guarantees a tidy and attractive appearance of cable products. The unique combination of the precisely calibrated wire inlet angle and the accurately controlled traversing system distinguishes this machine. Owning it revolutionizes the process as it cuts down labor time for packaging and eradicates human mistakes caused by inattention or carelessness.
Features:
Technical Parameters
| Spec/model | 260 | 500 |
|
Applicable wire type and size |
1.5-6mm²BV and BVR building cable |
Solid flat cable: 2*1.5mm2----3*4mm2 Solid round cable: 3*1.5mm2---5*2.5mm2 Soft round cable: 0.75 mm2---5*2.5 mm2 |
| Applicable wire diameter | φ3.0-φ5.0mm | φ5.0-φ15mm |
| Coiling head rotation speed | 1800RPM | 720RPM |
| Cable coil outer diameter | φ250mm | φ500mm |
| Cable coil inner diameter | φ130mm | φ200mm(Customizable) |
| Coil width (height) | 50～100mm | 60～200mm |
| PP strap | Width:12mm;thickness: 0.4-0.6mm. | Width:15mm; thickness: 0.6-0.8mm |
| Strap coil inner diameter | φ130mm | φ200mm |
| Strap coil outer diameter | φ250mm | φ430mm |
| Strap coil width (Height) | 50～100mm | 170mm |
| Strap number | 2 strap units, each for 2 straps | 1 strap unit for 2-3 straps |
| Joint method | Heat pressing | Heat pressing |
| Strapping speed | 4 coils/min | 3 coils/min |
