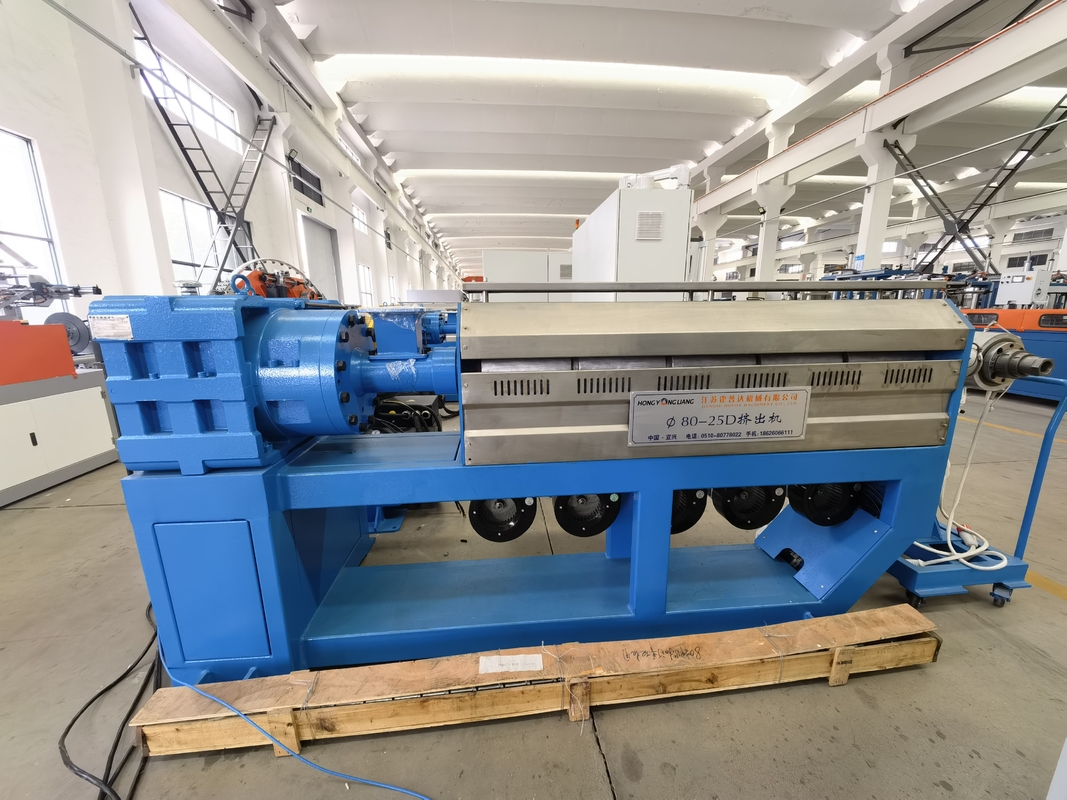

PVC XLPE LSZH Cable Extruder Machine 80mm Screw
  • PVC XLPE LSZH Cable Extruder Machine 80mm Screw
  • PVC XLPE LSZH Cable Extruder Machine 80mm Screw
  • PVC XLPE LSZH Cable Extruder Machine 80mm Screw
  • PVC XLPE LSZH Cable Extruder Machine 80mm Screw
  • PVC XLPE LSZH Cable Extruder Machine 80mm Screw
  • PVC XLPE LSZH Cable Extruder Machine 80mm Screw
PVC XLPE LSZH Cable Extruder Machine 80mm Screw

PVC XLPE LSZH Cable Extruder Machine 80mm Screw

Place of Origin China
Brand Name Hopda
Certification ce.ul
Model Number 80-25D (80mm screw diameter)
Product Details
Wire Outlet Diameter:
16-35mm
L/D Ratio:
25:1
Screw Rotation Speed:
80 Rpm
Extrusion Capacity (PVC):
290 Kg/h
Extrusion Capacity (PE):
245 Kg/h
Extrusion Capacity (LSZH):
315 Kg/h
Extrusion Capacity (XLPE):
215 Kg/h
Extrusion Capacity (HFFR):
230 Kg/h
Extrusion Power:
55-75kW
Traction Power:
5.5 KW
Take-up Power:
4 KW
Highlight:

XLPE cable extruder machine

,

LSZH cable extruder machine

,

80mm Screw pvc cable extruder machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Regular package, cargo shipment
Delivery Time
60-90days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

cable extrusion line for low and medium voltage wires and cables

Product Description:

The high-speed extrusion line that we have is capable of being used for insulating and sheathing bare wires of copper, aluminum, and aluminum alloy, with the application of PVC, PE, LSZH, HFFR, and XLPE materials.



Features:

  1.  Can be configured with additional extruders for co-extrusion or applying multiple colours on insulation layer
  2.  PLC control and user-friendly touch screen interface.
  3.  Precise fixed-center crosshead for minimal need for adjustment.
  4.  The productioin line adopts various detecting devices such as precision meter counter, lazer diameter gauge and spark tester to guarantee the consistency in product quality.​



Technical Parameters:

Model/specs 35-25D 45-25D 50-25D 65-25D 70-25D 80-25D 90-25D 100-25D 120-25D 150-25D 200-25D
Screw diameter (mm) Ø35 Ø45 Ø50 Ø60 Ø70 Ø80 Ø90 Ø100 Ø120 Ø150 Ø200
L/D ratio 18:1 25:1
Standard PVC(kg/h) 21 56 70 120 140 205 280 360 520 800 1120
Boosted productivity PVC(kg/h) 30 80 100 175 200 290 400 520 750 1150 1600
Standard LSZH(kg/h) 25 70 90 155 180 260 360 470 675 1050 1450
Boosted productivity LSZH(kg/h) 30 85 110 190 220 315 435 565 810 1260 1740
HFFR(kg/h) 20 65 80 140 160 230 320 420 600 900 1300
Power (Kw) 15 15-22 18-30 30-45 37-55 55-75 90-110 110-132 160-185 185-250 280-355
Outlet wire diameter (mm) 0.2-1.0 0.5-3.0 0.8-5.0 1.5-8.0 5-25 16-35 16-50 20-80 30-80 40-140 50-200






Product images:

PVC XLPE LSZH Cable Extruder Machine 80mm Screw 0

PVC XLPE LSZH Cable Extruder Machine 80mm Screw 1PVC XLPE LSZH Cable Extruder Machine 80mm Screw 2PVC XLPE LSZH Cable Extruder Machine 80mm Screw 3PVC XLPE LSZH Cable Extruder Machine 80mm Screw 4PVC XLPE LSZH Cable Extruder Machine 80mm Screw 5
