630-1000 Cantilever Single Wire Twisting Machine For CAT5 / Cat6 HDMI Optical Wire

 630-1000 Cantilever Single Twisting Machine For CAT5 / Cat6 HDMI Optical Wire

Technical parameters sheet:

Application:

Applicable for data cable (cat5e/cat6/cat6a/cat7) and multiple strand core wires cabling

and twisting as well as wrapping meanwhile.

Feature:

l Linkage at different speed mechanically, PLC program control, Electronic tracking pitch, human-computer interface, work steady at high speed.

l Loading and unloading trays is easy and requires low labor consumption.

l Pitch is controlled by computer, with non-tension traction wheels and a motion wiring cable passing path. The traction wheel diameter is increased to reduce the wire cable curve.

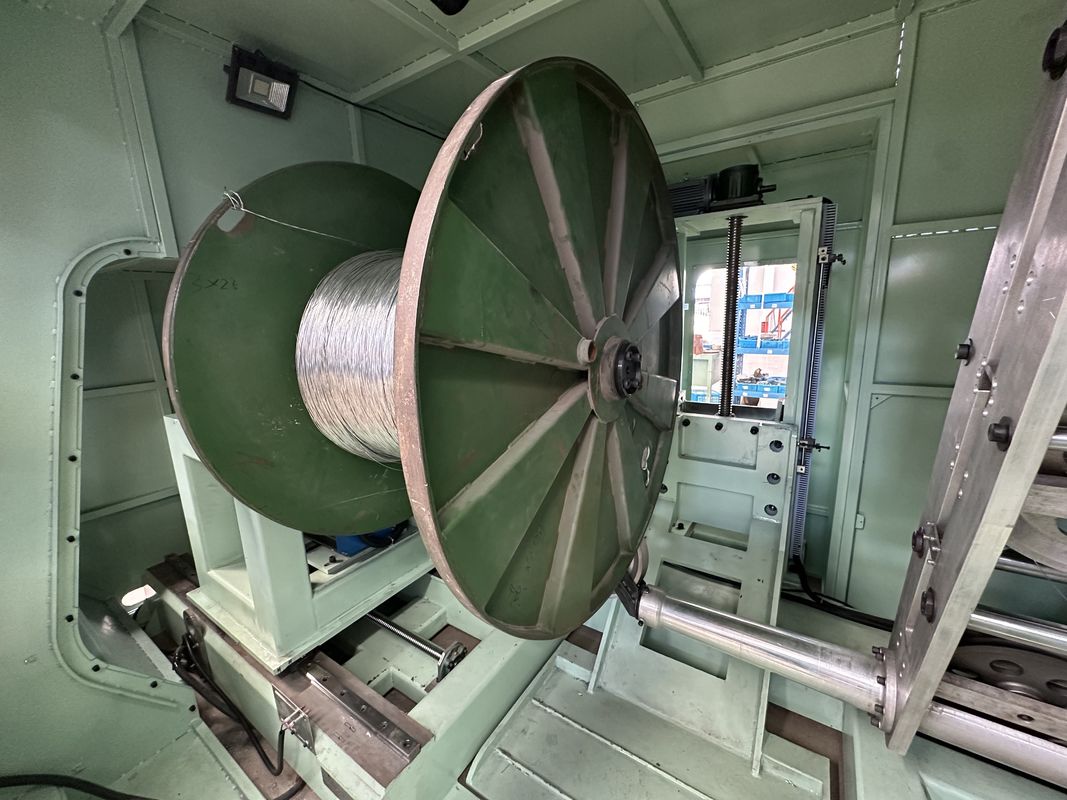

l The stranded main unit has a cantilever arm structure and a revolving body with low rotating inertia, high rpm, and stable speed.

Product Description:

The 800 Cantilever single-twisting cabling machine is a type of machinery used in the cable and wire manufacturing industry. It is specifically designed to perform the single-twisting process on cables and wires. Here's a general product description for an 800 Cantilever single-twisting cabling machine:

1. Capacity: The "800" in the machine's name typically refers to its maximum cable diameter or size. It indicates that the machine is capable of handling cables up to a certain diameter, such as 800mm.

2. Cantilever Design: The machine features a cantilever design, which means that it has a horizontal arm or beam that extends from a fixed support structure. This design allows for easy access and operation, as the cable can be fed onto the arm and twisted without obstruction.

3. Single-Twisting Process: The machine is specifically designed for single-twisting, which involves twisting a single cable or wire around its own axis. This process is commonly used to improve the cable's flexibility, strength, and resistance to external forces.

4. Twisting Speed: The twisting speed of the machine can vary depending on the specific model and manufacturer. It is typically adjustable to accommodate different cable types and twisting requirements. The speed is usually measured in rotations per minute (RPM).

5. Control System: The machine is equipped with a control system that allows operators to adjust and monitor various parameters during the twisting process. This control system may include features for setting and controlling twisting speed, tension, direction of rotation, and other relevant parameters.

6. Safety Features: The cabling machine is designed with safety features to protect operators and prevent accidents. These may include emergency stop buttons, safety guards, and sensors to detect abnormalities or malfunctions. The specific safety features can vary depending on the manufacturer and model.

7. Power Requirements: The machine typically requires a three-phase electrical power supply at a specific voltage and frequency. The exact power requirements may vary depending on the machine's specifications and the region in which it is used.

It's important to note that the specific features and specifications of an 800 Cantilever single-twisting cabling machine can vary depending on the manufacturer and model. For more detailed information, it is recommended to consult the manufacturer's documentation or reach out to a supplier specializing in cable and wire machinery.

Specifications
