Cantilever Single Twist Cabling Machine
>
|
| Place of Origin | China |
| Brand Name | Hopda |
| Certification | ISO,CE |

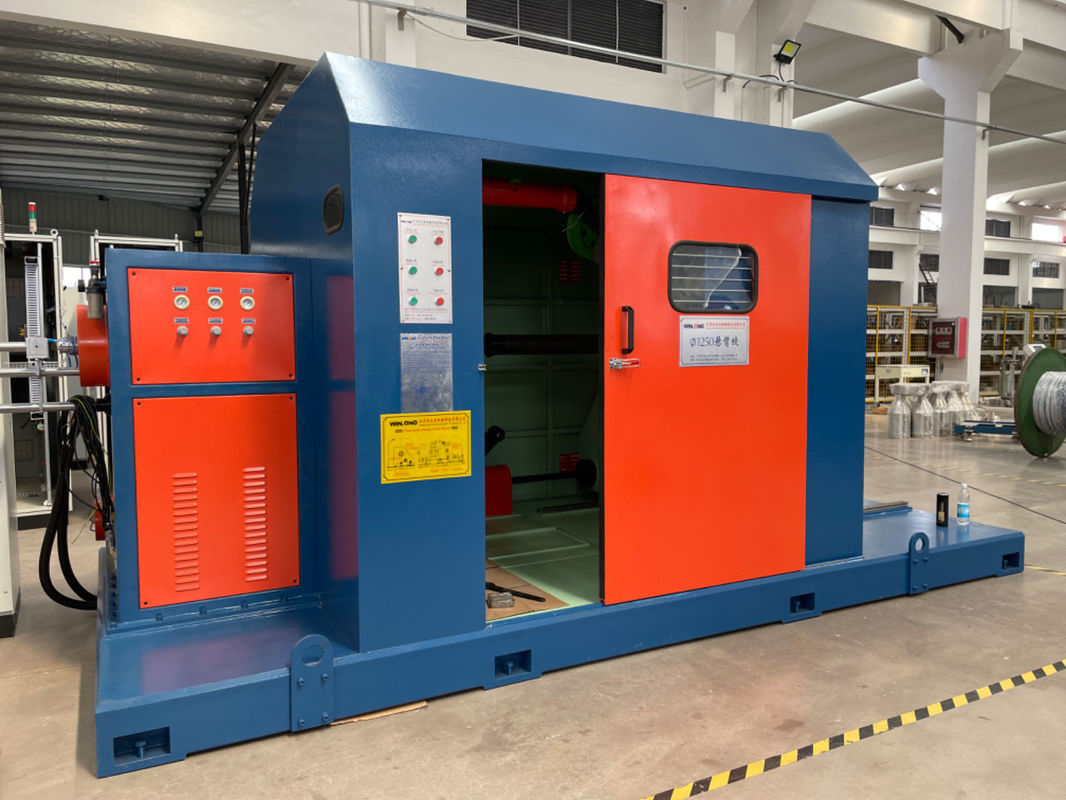

1000mm Cantilever Single Twist Machine With 12 Head Electromagnetic Pay Off Rack
630-1000 Cantilever Single Twisting Machine For CAT5 / Cat6 HDMI Optical Wire
Technical parameters sheet:
| Model | YL-Φ800 | |
| Pay-off bobbin (mm) | Φ400－Φ630 | |
| Take-up bobbin (mm) | Φ800 | |
| Dia. Of core wire (mm) | Φ0.3-Φ3.0 | |
| Max. Dia. Of finished product (mm) | Φ18 | |
| Pitch of twist (mm) | 30-300 | |
| Max Speed of rotation (rpm) | 680 | |
| Pitch of traversing (mm) | 3-20 | |
| Taking-up tension | Pneumatic tension track, adjusted easily | |
| Type of take-up and traversing | Take-up in accordance of the rotation of bobbin, traversing in accordance of the reciprocating movement of bobbin. | |
| Twisting direction | “S” or “Z” | |
| Wrapping device | Intermediate wrapping or packing directly | |
| Type of pay-off | adopt drive pay-off machine | |
Application:
Applicable for data cable (cat5e/cat6/cat6a/cat7) and multiple strand core wires cabling
and twisting as well as wrapping meanwhile.
Feature:
l Linkage at different speed mechanically, PLC program control, Electronic tracking pitch, human-computer interface, work steady at high speed.
l Loading and unloading trays is easy and requires low labor consumption.
l Pitch is controlled by computer, with non-tension traction wheels and a motion wiring cable passing path. The traction wheel diameter is increased to reduce the wire cable curve.
l The stranded main unit has a cantilever arm structure and a revolving body with low rotating inertia, high rpm, and stable speed.
Product Description:
A 1000mm cantilever single twist machine with a 12-head electromagnetic payoff rack is a specific type of cable twisting machine used for the production of twisted cables. The machine has a cantilever design, meaning that it has an extended arm or beam that supports the rotating components.
Here are some key features and components of a 1000mm cantilever single twist machine with a 12-head electromagnetic payoff rack:
Cantilever Design: The machine's cantilever design provides stability and flexibility during the twisting process. It allows for easy access to the twisting area, making it convenient to load and unload cables.
Single Twist Configuration: This machine is designed for single twist cable production, where two or more conductors are twisted together to create a cable. The machine typically has rotating components that twist the conductors in a helical pattern to form the desired cable structure.
1000mm Capacity: The machine is capable of handling cables with a maximum outer diameter of 1000mm. This capacity determines the size of cables that can be produced on the machine.
Electromagnetic Payoff Rack: The machine features a 12-head electromagnetic payoff rack. The payoff rack holds multiple reels or bobbins of conductors, and the electromagnetic system provides precise tension control during the cable production process. This ensures consistent tension on the conductors, resulting in higher quality twisted cables.
Control Panel: The machine is equipped with a control panel that allows operators to monitor and adjust various parameters, such as speed, tension, and twist direction. The control panel provides an interface for setting and modifying the machine's operating parameters to meet specific cable production requirements.
Safety Features: The machine may be equipped with safety features, such as emergency stop buttons, protective covers, and sensors to ensure safe operation and prevent accidents.
