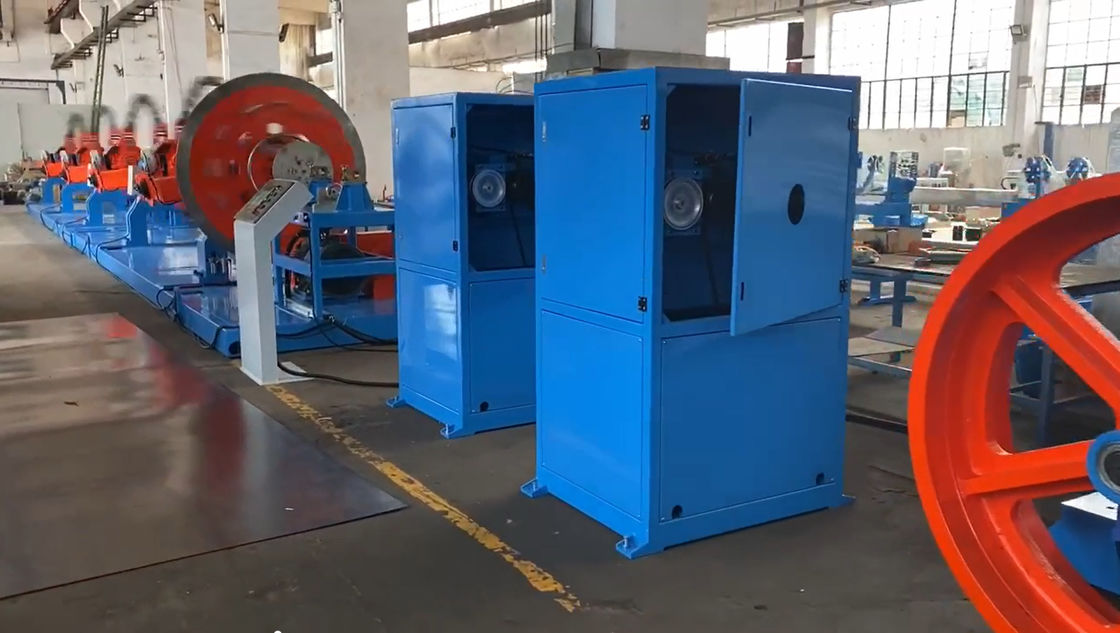

Semi Automatic High Speed Skip Stranding Machine Bow Cablers And Skip Stranders

Semi / Automatic Skip Stranding Machine 55 Kilowatt Motor Power CE Approved

Specification:

Description:

Our high-speed bow-type stranding machine comes with wiring tension control, ensuring stable and efficient performance. It is capable of stranded and cabling control cables, power cables, etc. Using 65Mn alloy steel bow belt, the overall dynamic balance is good. Each reel bow is fixed at both ends of the shaft, and a toothed pulley is connected on the shaft, and the driving side is driven by the toothed pulley set of the drive shaft to input. All places where the cable passes through are equipped with guide wheels, which is beneficial for the cable to pass through.

Feature:

• The 65Mn alloy steel bow band is adopted, with good overall dynamic balance.
• All the reels are equipped with broken wire detection. When a broken wire or a complete wire occurs, the guide wheel sinks and hits the travel switch, causing the machine to stop.
• Wiring tension control: Belt and spring combination and magnetic powder tension for automatic adjustment of full and empty discs.
• The main engine safety cover is equipped with a manually push-pull movable door, and each movable door is attached with an acrylic transparent window to facilitate observation of the equipment's operating condition.

The 1600 Bow Type Cabling/Laying Up Machine is a type of machinery used in the cable manufacturing industry. It is designed to perform the cabling or laying up process for manufacturing power cables, communication cables, and other types of cables. Here's a general product description for a 1600 Bow Type Cabling/Laying Up Machine:

1. Capacity: The "1600" in the machine's name typically refers to its maximum cable diameter or size. It indicates that the machine is capable of handling cables up to a certain diameter, such as 1600mm.

2. Bow Type Design: The machine features a bow type design, which consists of a bow-shaped structure that holds multiple wire or cable strands. The strands are guided and laid up in a helical or parallel configuration to form the final cable structure.

3. Cabling/Laying Up Process: The machine is specifically designed for the cabling or laying up process, which involves twisting or laying multiple wires or cables together to form a unified cable. This process helps improve the cable's mechanical strength, flexibility, and electrical characteristics.

4. Speed and Tension Control: The machine is equipped with a control system that allows operators to adjust and control the speed and tension of the wire or cable strands during the cabling/laying up process. This control system ensures uniformity and accuracy in the cable structure.

5. Bobbin Handling: The machine typically includes a system for handling multiple bobbins or reels of wire or cable strands. These bobbins are mounted on spindles or creels and are fed into the machine to supply the individual strands for the cabling process.

6. Control System: The machine is equipped with a control system that enables operators to adjust and monitor various parameters during the cabling/laying up process. This control system may include features for setting and controlling speed, tension, direction of rotation, pitch, and other relevant parameters.

7. Safety Features: The cabling/laying up machine is designed with safety features to ensure operator safety and prevent accidents. These safety features can include emergency stop buttons, safety guards, and sensors that detect abnormalities or malfunctions. The specific safety features can vary depending on the manufacturer and model.

8. Power Requirements: The machine typically requires a three-phase electrical power supply at a specific voltage and frequency. The exact power requirements may vary depending on the machine's specifications and the region in which it is used.

It's important to note that the specific features and specifications of a 1600 Bow Type Cabling/Laying Up Machine can vary depending on the manufacturer and model. For detailed information, it is recommended to consult the manufacturer's documentation or contact a supplier specializing in cable manufacturing machinery.
