2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist
  • 2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist
  • 2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist
  • 2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist
  • 2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist
  • 2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist
  • 2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist
2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist

2000mm 1+4 Pitch Tracking Cabling Machine For Electric And Phone Wire Back-twist

Place of Origin China
Brand Name Hopda
Certification ISO,CE
Model Number 1600, 1+5
Product Details
Single Wire Diameter (soft Conductor):
10-20mm
Single Wire Diameter (hard):
3.5-8mm
Max. OD:
70mm
Stranding Pitch:
60-1500mm
Max. Rotation Speed:
250rpm (3B)
Traction Speed:
120m/min
Power:
90KW
Take-up Bobbin:
PN2500
Payoff Bobbin In Cage:
PN1600
Center Height:
1000mm
Highlight:

1+4 pitch tracking cabling machine

,

Electric Phone Wire Tracking Cabling Machine

,

2000mm tracking cabling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set (stranding host can be ordered separately)
Price
negotiable
Packaging Details
Seaworthy packaging in containter for export
Delivery Time
if no stock in place, 30-60 calendar days
Payment Terms
T/T,L/C
Supply Ability
5 set per month
Product Description
Description and application:

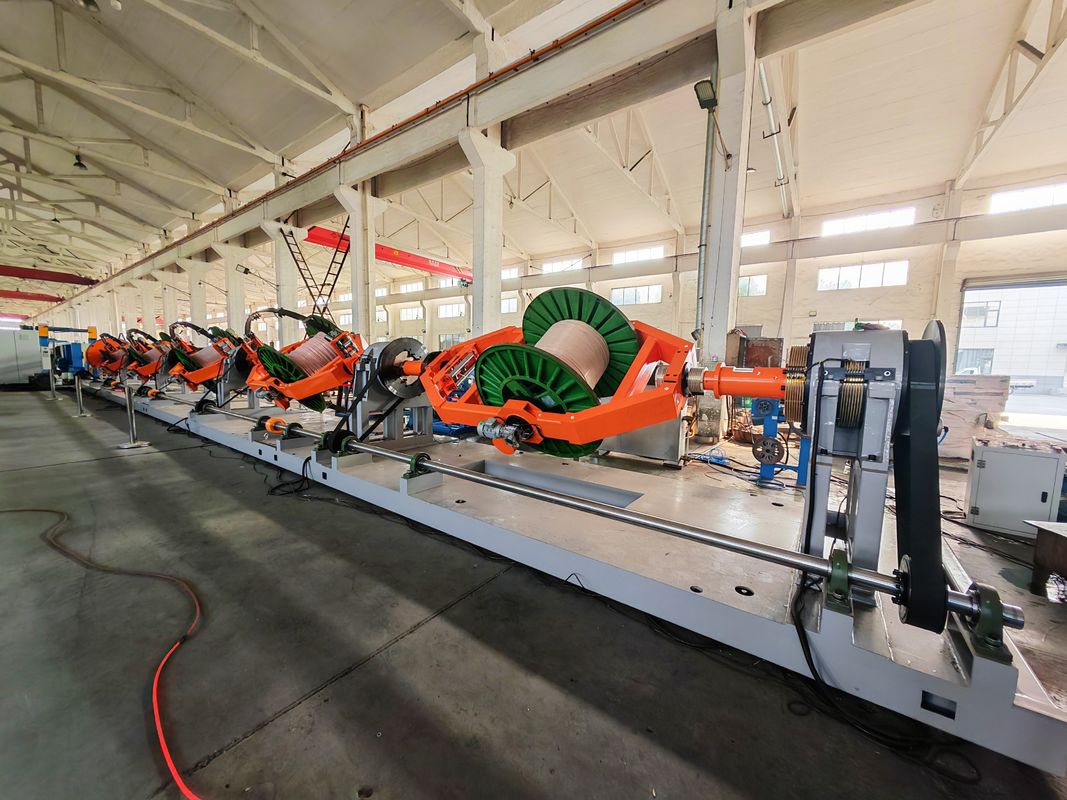

With productivity levels that surpass those of the conventional cradles type cabling machine, our bow type laying up machine is suitable for stranding soft structure cables like control cables, ACSR overhead cables, power cables, and bare copper, aluminum, and aluminum alloy wires with up to 7 cores. You can decide whether to have the back - twist function according to your needs. The machine's drive can be either independent or ground shaft-based.​

Features:​
  • The human - machine interface, which is user - friendly, enables easy operation and full - scale monitoring.​
  • Automatic pitch adjustment is achieved via PLC.​
  • A back - twist mode with a maximum of 100% can be added.​
  • There are independent drive and ground shaft drive choices.​
  • AC induction servo motors are used for reliable and energy - efficient operation.


Specification:




Payoff bobbin(mm)

Max. rotation speed

(r/min)

Single wire diameter

(mm)



Pitch

(mm)



Max. OD(mm)



Power(KW)



Caterpillar(kg)





Take-up



Central height(mm)

 Length * width(m)
3B 4B 5B 6B Soft conductor Hard conductor
Ø1000 430 400 370 350 Ø8～Ø15 Ø3.0～Ø6.0 90-1400 24 37 1600 PN1600 1000 50×6
Ø1250 330 288 270 250 Ø8～Ø15 Ø3.0～Ø6.0 48-1500 60 55 2000 PN2000 1000 55×6
Ø1600 250 220 200 180 Ø10～Ø20 Ø3.5～Ø8.0 60-1500 70 90 2000 PN2500 1000 60×7





Main components:
  1. Central pay-off stand
  2. Wire guiding stand
  3. Stranding host
  4. Filer payoff stand (Optional)
  5. Assembling die holder
  6. Central taping machine
  7. Armouring machine
  8. Meter counter
  9. Capstan/Hual-off/Caterpillar
  10. Take up with traversing
  11. Control system
  12. Transmission system
  13. Wearing parts

Product images:
